Belt-Type Turnover Devices
Belt-Type Turnover Devices

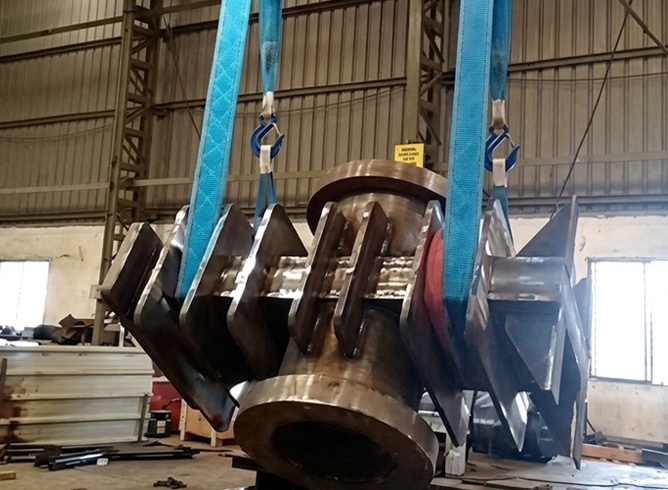

In many manufacturing and assembly operations, components need to be turned or inverted during processing. Traditionally, this is done by lifting one side with a crane and manually tipping it over—an operation that is dangerous, unstable, and highly risky. Even using two cranes increases safety but results in high equipment engagement, low productivity, and increased operator effort.
To overcome these challenges, Impression Systems & Engineers Pvt. Ltd. has engineered an innovative and highly efficient solution: the Belt Type Turnover Device. Designed to ensure safe and controlled turning of components, this system improves workplace safety, reduces manual risk, and significantly enhances operational efficiency.
Key Features
- Safe & Controlled Turning Operation : Eliminates unsafe manual tipping practices. Components are turned smoothly with controlled movement.
- Compatible With Existing Cranes :
- Any EOT crane hoist
- Fixed hoist installations
- Wireless Remote-Controlled Operation : The device is operated using a wireless radio remote, similar to a standard EOT crane, making handling simple and intuitive.

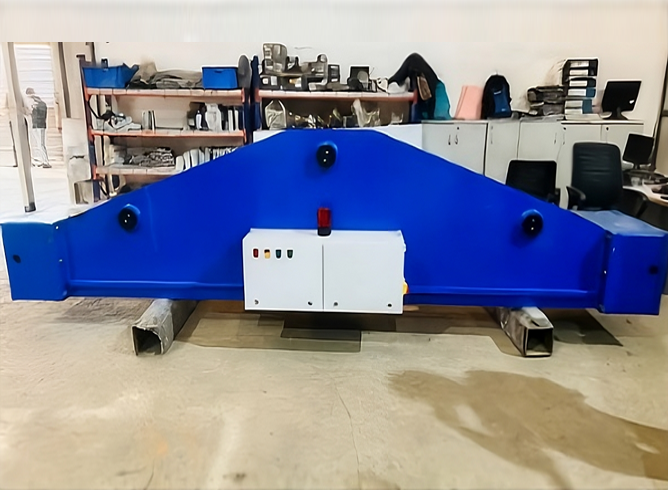

- Available in Two Configurations : 1. Fixed Spreader Beam Type (Two-Belt System)
- Ideal for compact or medium-sized components
- Mounted on a single hoist
- Provides limited but effective belt adjustment for safe turnover
- Two independent units mounted on two separate hoists
- Designed for long or large components requiring synchronized movement
- Both units operate together through a single RRC (Remote Radio Controller)
- Wide Capacity Range :Our Belt Type Turnover Devices are available from 1 ton to 30 tons, and can be custom-engineered based on customer needs.
- Custom Controls & Add-On Options :
- Option to control the EOT crane using the same remote
- Complete crane + hoist supply available on request
- Tailored belt sizes, beam lengths, and safety features
Plug-and-play electrical connectors ensure quick installation without major modifications.
Benefits of Belt Type Turnover Devices
- Enhanced safety for operators
- Reduced dependency on multiple cranes
- Faster component inversion cycles
- Smooth and precise movement
- Lower risk of component damage
- Reduced shop floor congestion
- Easy installation and integration
Application Industries
Our Belt Type Turnover Devices are used across multiple industries where safe turning of heavy or awkward components is essential:
- Automotive & Auto Ancillaries : Turning chassis parts, frames, structural members, axles, and subassemblies.
- Heavy Fabrication & Engineering Industries : Handling fabricated structures, welded assemblies, beams, frames, and heavy tools.
- Construction Equipment Manufacturing : Rotation of long booms, arms, buckets, and large fabricated parts.
- Wind & Power Generation : Turning turbine components, housings, casings, and structural elements.
- Shipbuilding & Marine Engineering : Safe inversion of large plates, hull sections, and heavy marine components.
- Railway & Metro Manufacturing : Handling bogies, frames, panels, and long-length railway parts.
- Aerospace & Defence : Turning precision components, fixtures, and heavy assemblies safely.
- General Manufacturing : Any application requiring safe and controlled component turnover.
